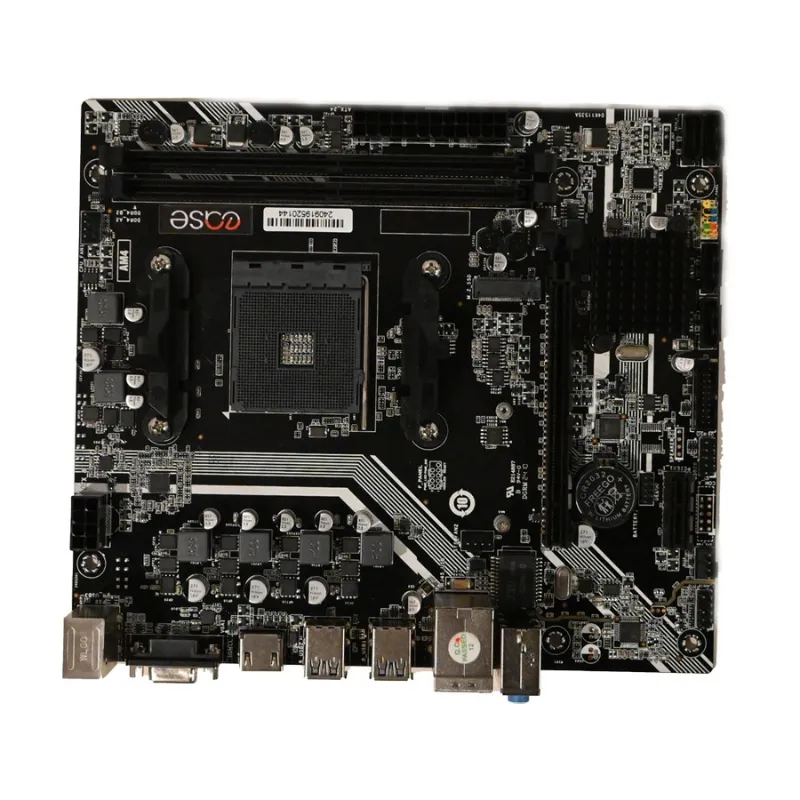

Ease A520M E AMD AM4 DDR4

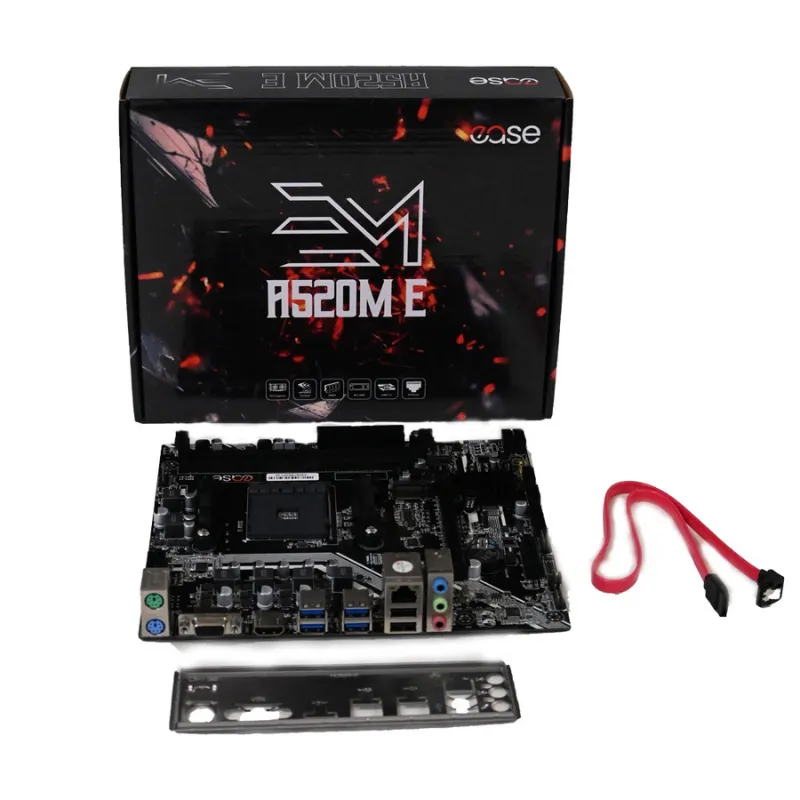

Ease A520M E AMD AM4 DDR4 - Image 2

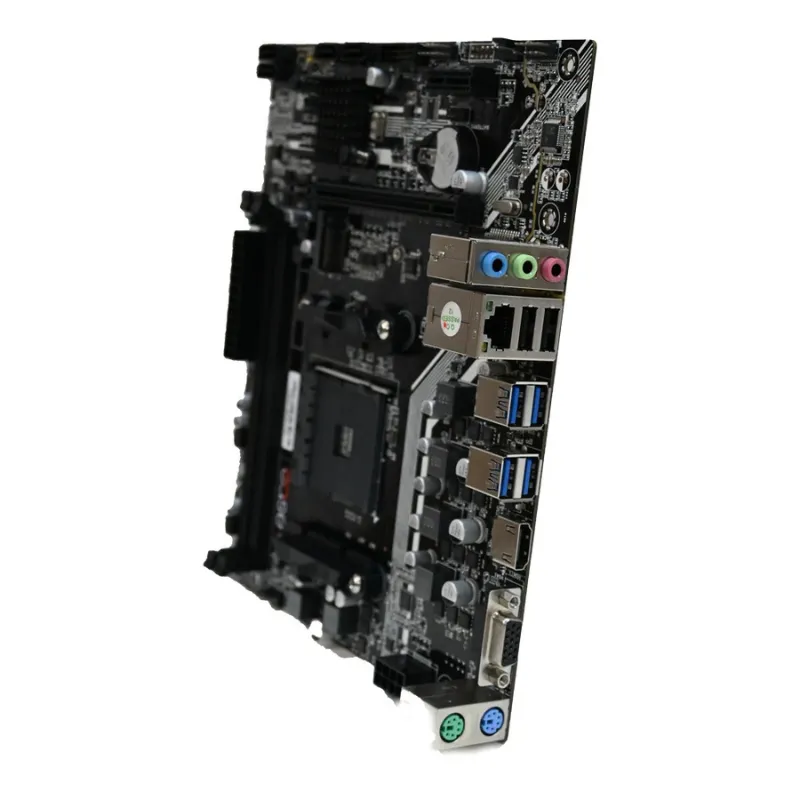

Ease A520M E AMD AM4 DDR4 - Image 3

Ease A520M E AMD AM4 DDR4

Ease A520M E AMD AM4 DDR4

  • PCI slots for expansion cards
  • High-speed chipset for fast performance
  • Supports DDR4 RAM
  • M.2 SSD slot for ultra-fast storage
  • USB 3.2 ports for high-speed data transfer
  • Built-in Ethernet for stable network connectivity



Download Driver
Download Catalogue

Get a quote
Get a quote on whatsapp

Description

Processor Compatibility: Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 3000 Series Desktop Processors. Memory Support: Accommodates up to 64GB of DDR4 RAM across two DIMM slots, supporting speeds up to 4600 MHz (OC). ​Expansion Slots: Features one PCIe 3.0 x16 SafeSlot Core for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. ​Storage Options: Includes one M.2 slot supporting up to 2280 devices and four SATA 6Gb/s ports for various storage configurations.

Specification Description
CPU AMD® Socket AM4 supports Ryzen 3000, 4000, and 5000 series processors
Chipset AMD® A520 Chipset
Memory 2 × DDR4 DIMM slots, 2133/2400/2666/2933/3200MHz, up to 64GB
Display 1 × DP port / 1 × HDMI port
Storage 4 × SATA3.0 ports (6Gb/s)
Network Realtek® Ethernet Controller
Audio Realtek® ALC897 high-fidelity audio controller (optional ALC662)
Expansion Slots 1 × PCIe 3.0 x16 slot, 1 × PCIe 3.0 x1 slot
Rear I/O 1 × PS/2 combo port (keyboard/mouse), 2 × USB2.0 ports, 1 × HDMI port, 1 × VGA (D-Sub) port, 4 × USB3.2 Gen1 ports, 1 × RJ45 port, 1 × Audio Jack (Line-In/Line-Out/Mic-In)
Support System Windows® 11, Windows® 10
BIOS UEFI AMI BIOS
PCB Size Micro-ATX (217mm × 190mm)
