Description

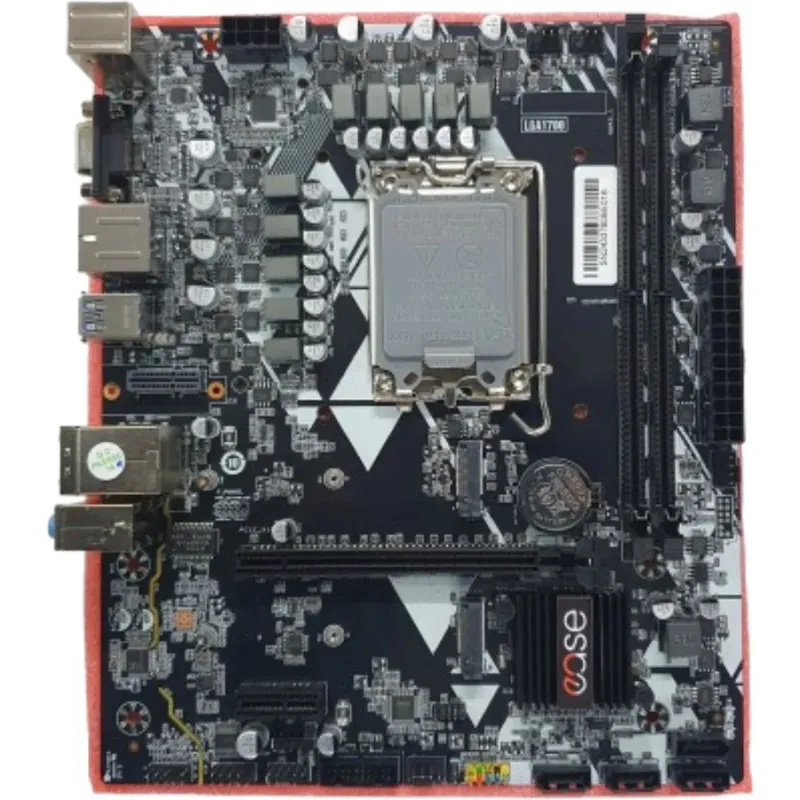

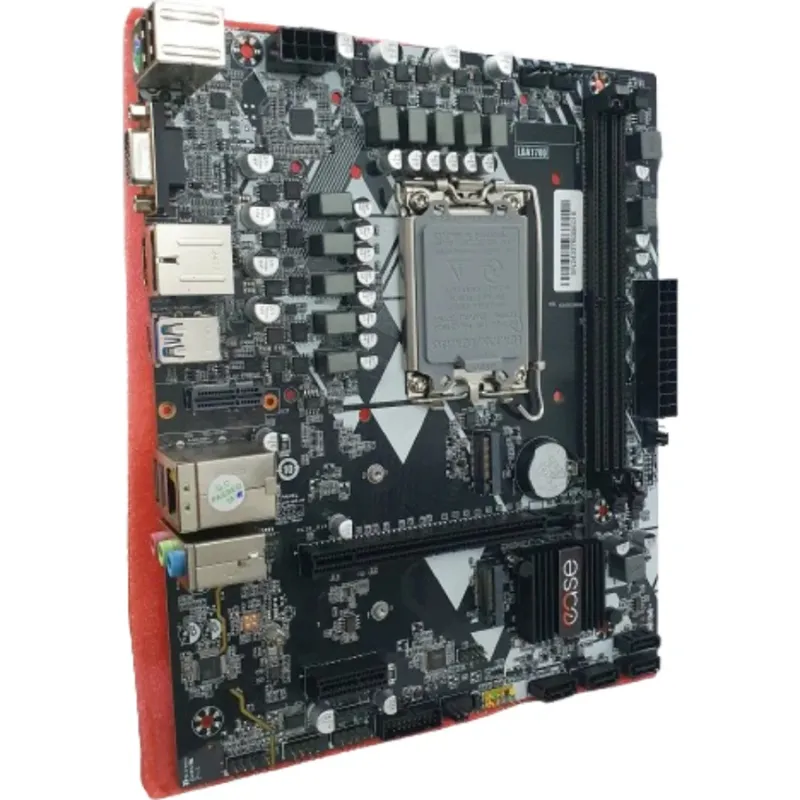

EASE EB760M DDR5 LGA1700 Motherboard
EASE Essential B760 MB DDR5 two memory slots
– Supports LGA1700 12/13th/14th Gen Intel@ core TMi3/i5/i7/i9/Pentium/Celeron series processors
– Support 2*DDR5 UDIMM Slot 4800MHz, up to 64GB
– Support 4* SATA 3.0 Port 6Gb/s
– Realtek® RTL8125B 2500Mbps | Optional Realtek® RTL8111H 1000Mbps
– Support 6 Channel Audio Input/Audio Output/Mic
| Specification | Description |
|---|---|
| CPU | Intel® Socket LGA1700 supports 12th/13th/14th Gen Core i3/i5/i7/i9/Pentium/Celeron processors |
| Chipset | Intel® B760 Chipset |
| Memory | 2 × DDR5 UDIMM slots, 4800MHz, up to 64GB |
| Display | 1 × HDMI port (optional VGA) / 1 × DP port / 1 × HDMI port |
| Storage | 4 × SATA3.0 ports |
| Network | Realtek® RTL8125B 2500Mbps Ethernet (optional Realtek® RTL8111H 1000Mbps) |
| Audio | Realtek® ALC662 High Definition Audio (optional Realtek® ALC897 High Definition Audio) |
| Expansion Slots | 1 × PCIe 4.0/5.0 x16 slot, 1 × PCIe 3.0 x1 slot, 1 × M.2 Wi-Fi slot (supports CNVi) |

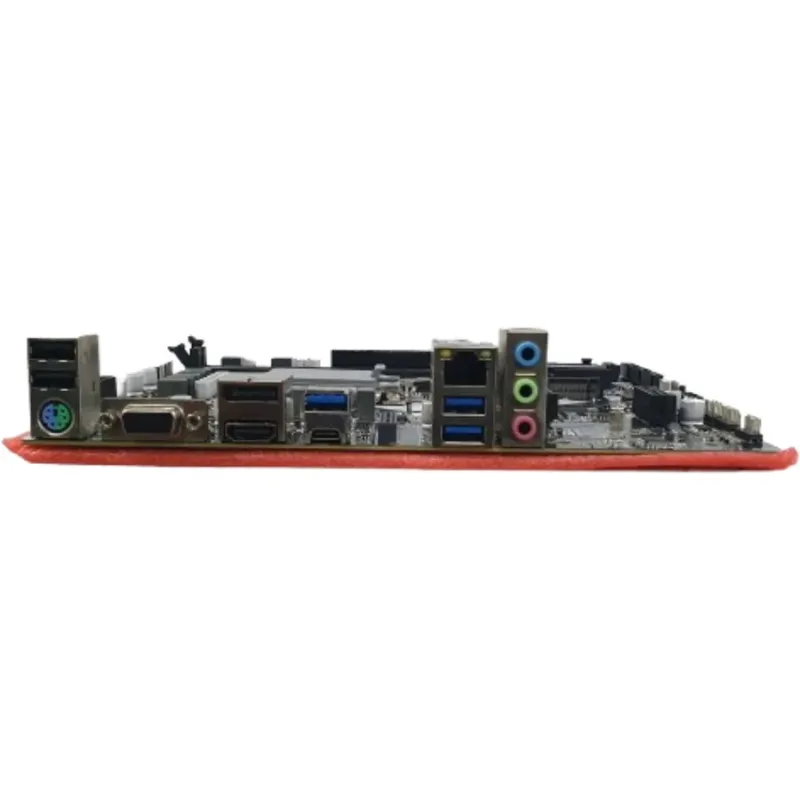

| Rear I/O | 1 × PS/2 port, 2 × USB2.0 ports, 1 × VGA port (shared with HDMI), 1 × USB3.2 Gen2 port, 2 × USB3.2 Gen1 ports, 1 × RJ45 port, 1 × HDMI + DP port, 1 × Type-C port, 1 × Audio Jack (Line-In/Line-Out/Mic-In) |
| Support System | Windows® 11, Windows® 10 64-bit |
| BIOS | UEFI AMI BIOS |
| PCB Size | Micro-ATX (190mm × 230mm) |
