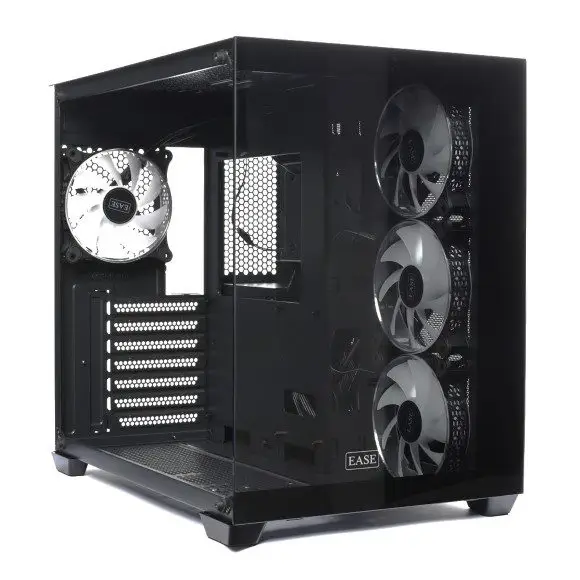

EASE EC124B Case

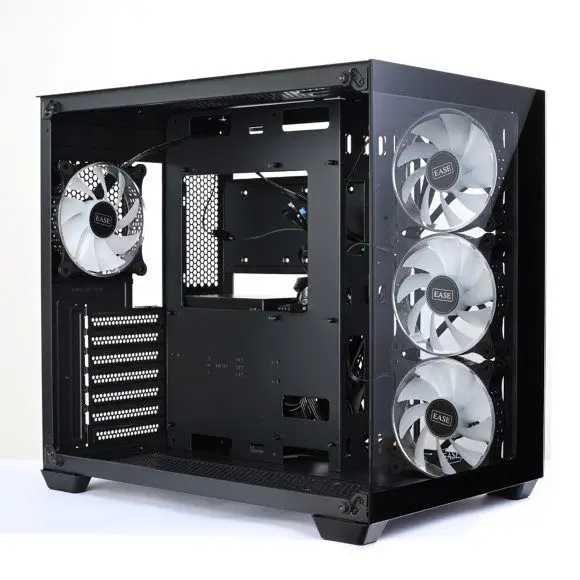

EASE EC124B Case - Image 2

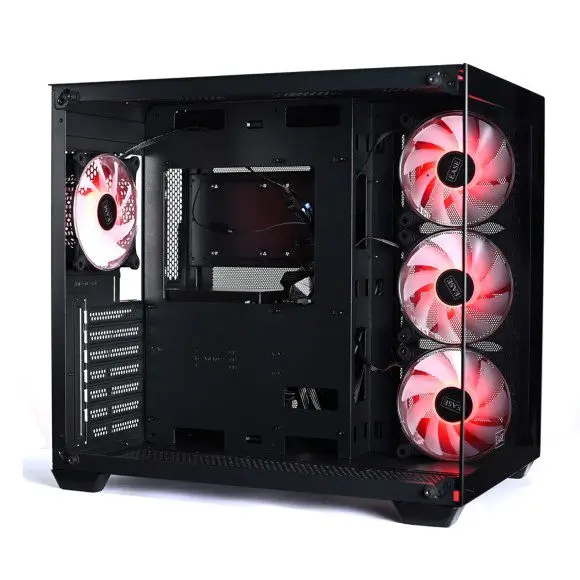

EASE EC124B Case - Image 3

EASE EC124B Case

  • Motherboard Support: ATX / Micro-ATX / ITX

  • PSU Type: ATX power

  • CPU Cooler Clearance: 160 mm

  • GPU Clearance: 410 mm

  • Storage: 2 × HDD + 3 × SSD

  • I/O Ports: USB 3.0 ×1, USB 2.0 ×2, Type-C ×1, HD Audio

  • Panels: Tempered glass panoramic view design

  • Cooling Support:
     • Top: 3 × 120 mm / 2 × 140 mm or water cooling
     • Side: 3 × 120 mm / 2 × 140 mm
     • Bottom: 3 × 120 mm fans or water cooling
     • Rear: 1 × 120 mm fan

  • Dimensions: 420 × 385 × 380 mm

Get a quote
Get a quote on whatsapp

Description

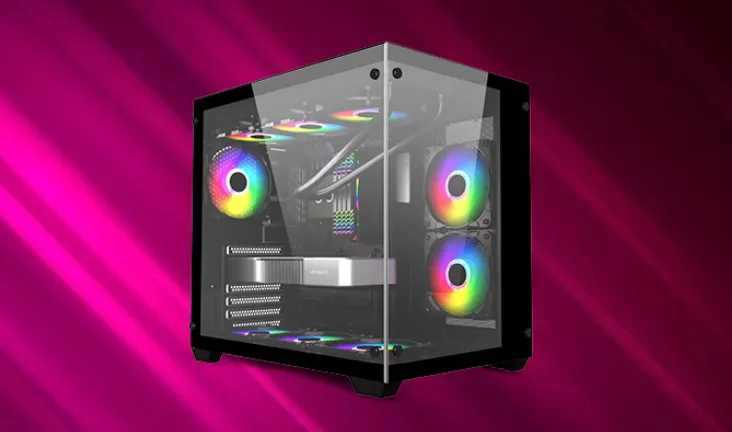

Panoramic View

  • Fans 4 * 12CM ARGB Fans
  • Support Water Cooling
  • Upper Plate Supports Water Cooling Fan
  • Lower Plate Support Water Cooling Fan
  • Motherboard Supports Water cooling

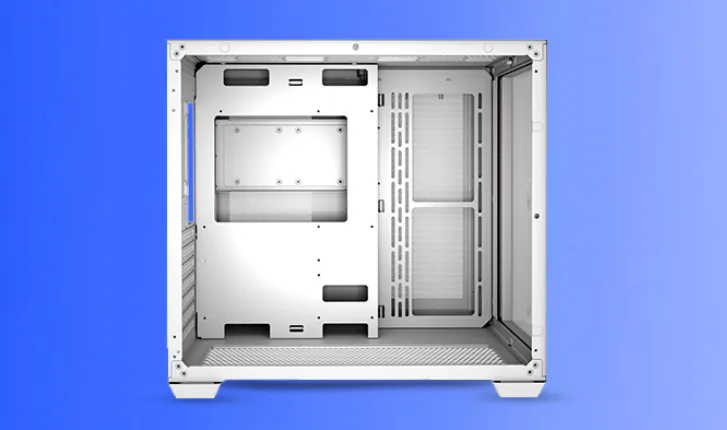

Hardware Installations

  • VGA Card Length – 410mm
  • Micro ATX / ATX
  • CPU Height Max : 160mm

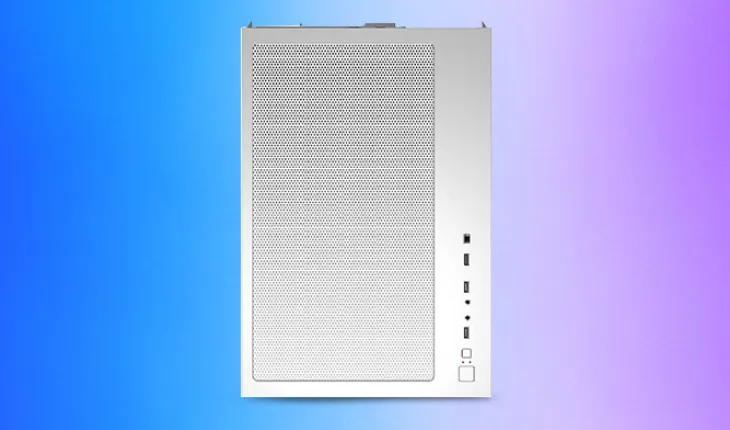

Front Ports

  • LED Port
  • USB 3.0 / Type C
  • USB 2.0 * 2
  • Audio Ports * 2
  • HDD LED / Power LED
  • Light Touch Reset Switch
  • Light Touch Power Switch


HDD Installations

  • Super Compatible With HDD Installations
  • 2 HDD s Slots
  • 3 SSD s Slots
  • Bottom SSD Slot Available
Specification Details
Colour Black
Motherboard Form Factor ATX / Micro ATX / ITX
PSU Form Factor ATX power
CPU Cooler Clearance (Max Height) 160 mm
GPU Clearance (Max Length) 410 mm
Drive Bays / Hardware Capability 3.5’’ HDD ×2 + 2.5’’ SSD ×3
I/O Ports USB 2.0 ×2 + USB 3.0 ×1 / Type-C ×1
Side & Front Panel Tempered glass front, top & left side panel
Chassis Dimension (Product Size) L425 × W285 × H380 mm
Fan Positions / Cooling Support 3 ×120 mm fans on bottom panel, 3 ×120 mm (or 2 ×140 mm) on top panel, 1 ×120 mm on back panel, 3 ×120 mm (or 2 ×140 mm) on motherboard panel
Material of Chassis A-grade SPCC, 0.8 mm thickness
Net / Gross Weight N/A
Carton Size L470 × W375 × H526 mm
