Description

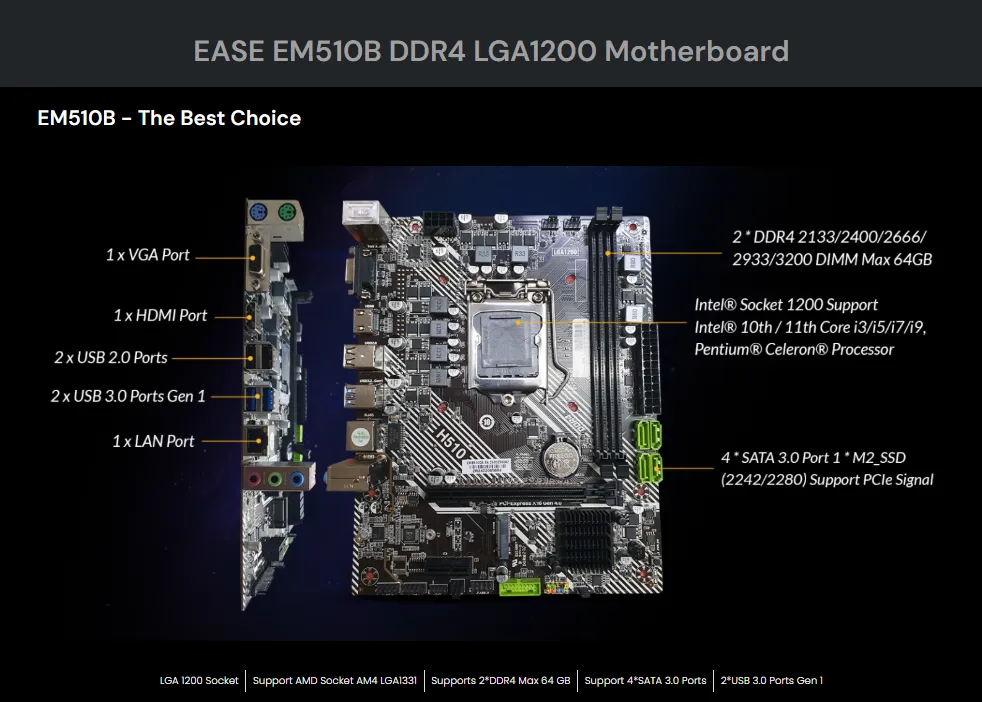

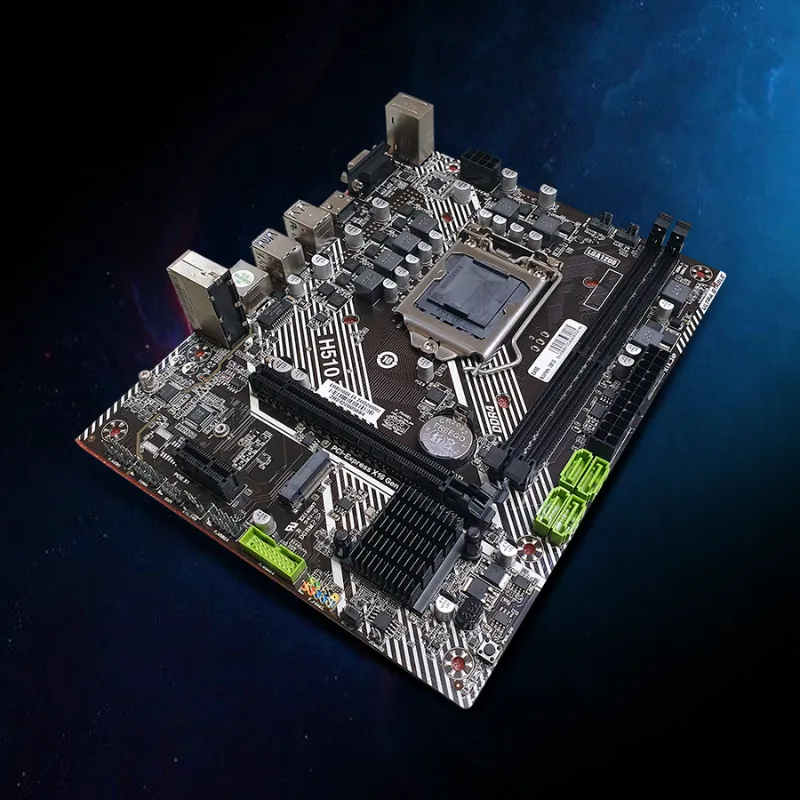

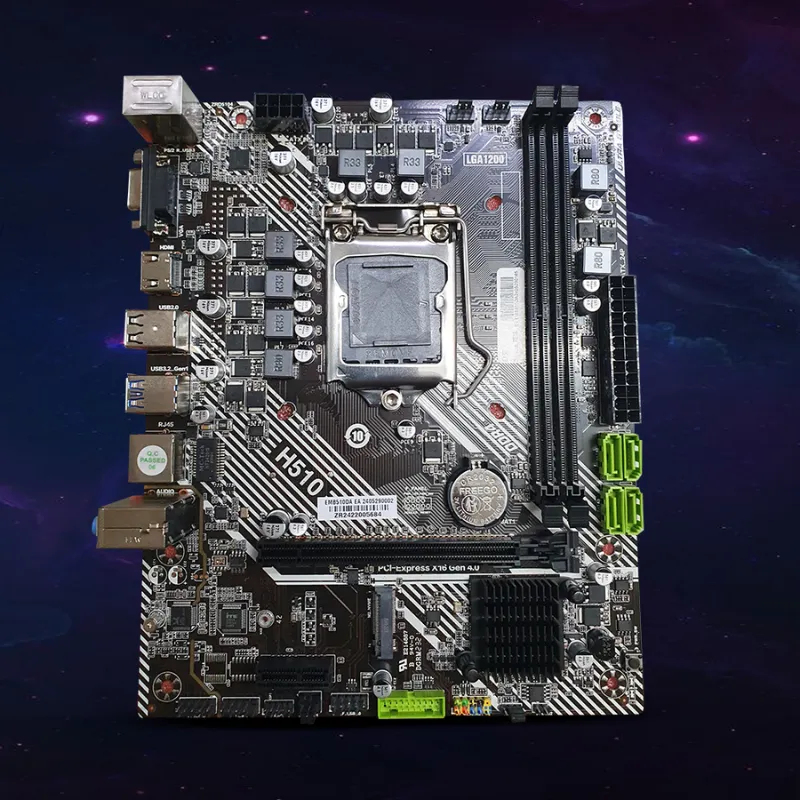

EASE EM510B DDR4 LGA1200 Motherboard
EASE H510 2*DDR4 M.2 SSD Intel Gen 10/11
– Chipset: Intel@ H510 Chipset

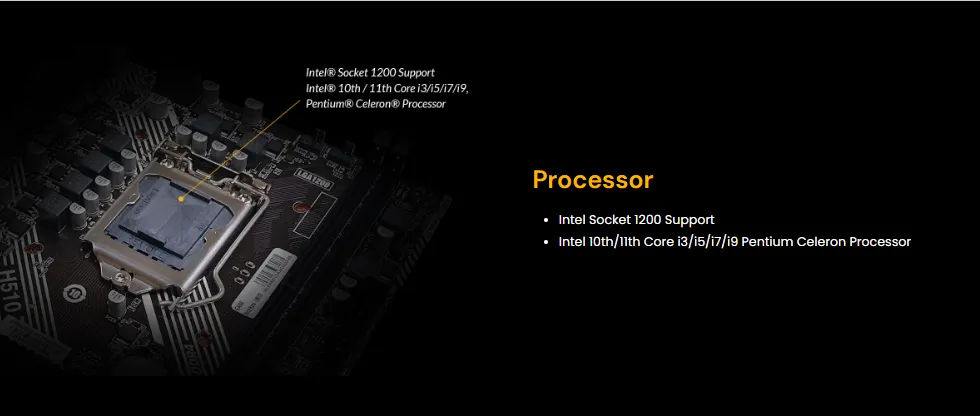

– Socket: Intel® Socket 1200

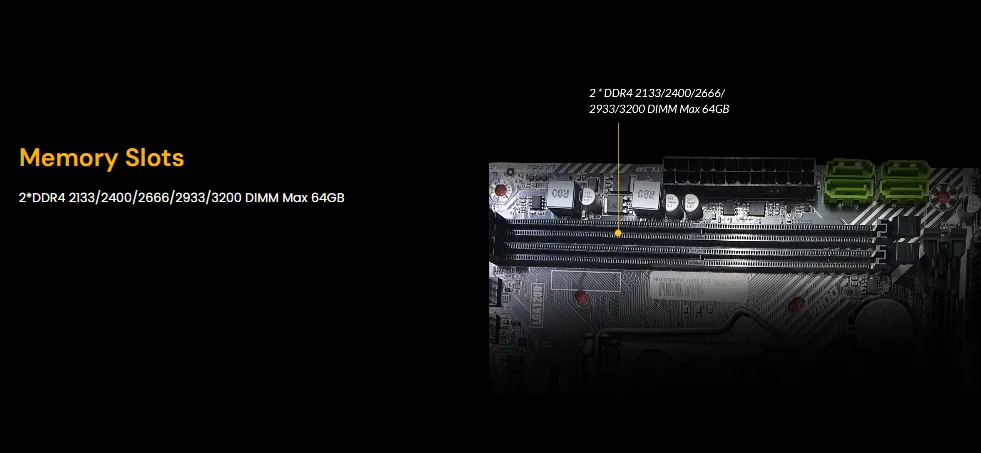

– Memory: 2 * DDR4 2133/2400/2666/2933/3200
– LAN: Support Realtek® RTL8111E 1000M
– Audio: Support Realtek® ALC662 High Definition Audio
| Specification | Description |
|---|---|
| CPU | Supports Intel® 12th/13th Gen Core™, Pentium® Gold, and Celeron® processors (LGA1700) |
| Chipset | Intel® H510 Chipset |
| Memory | 2 × DDR4 DIMM slots, dual channel, 2400/2666/2933/3200MHz, up to 64GB |
| Display | 1 × HDMI port / 1 × VGA port / 1 × DisplayPort |
| Storage | 4 × SATA 6Gb/s ports, 1 × M.2 slot (PCIe 3.0 x4 / SATA) |
| Network | Realtek® RTL8111H Gigabit Ethernet Controller |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Expansion Slots | 1 × PCIe 4.0 x16 slot, 2 × PCIe 3.0 x1 slots, 1 × M.2 (Key E) slot for WiFi/BT |

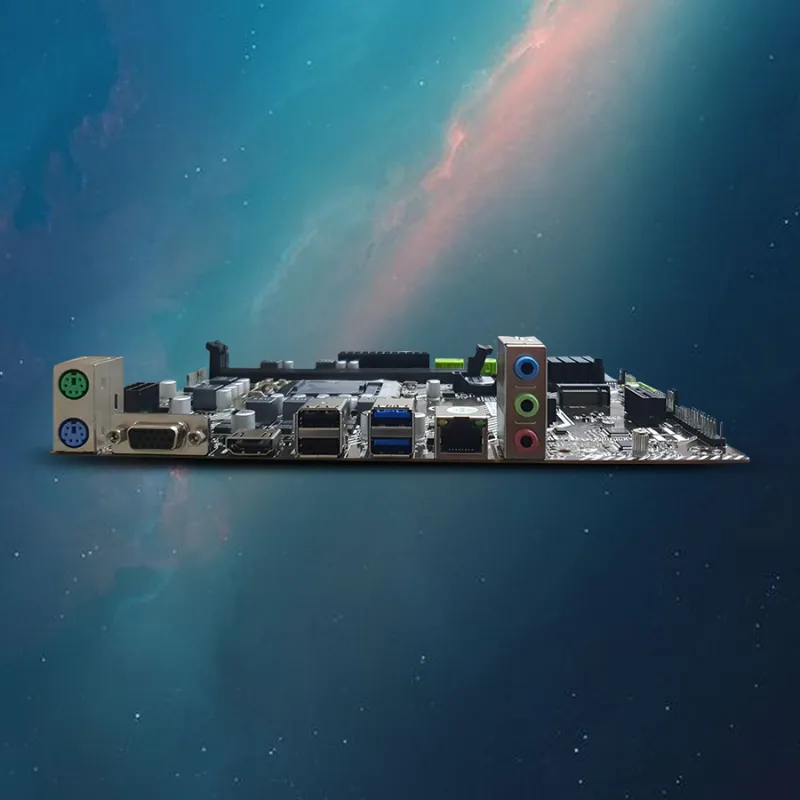

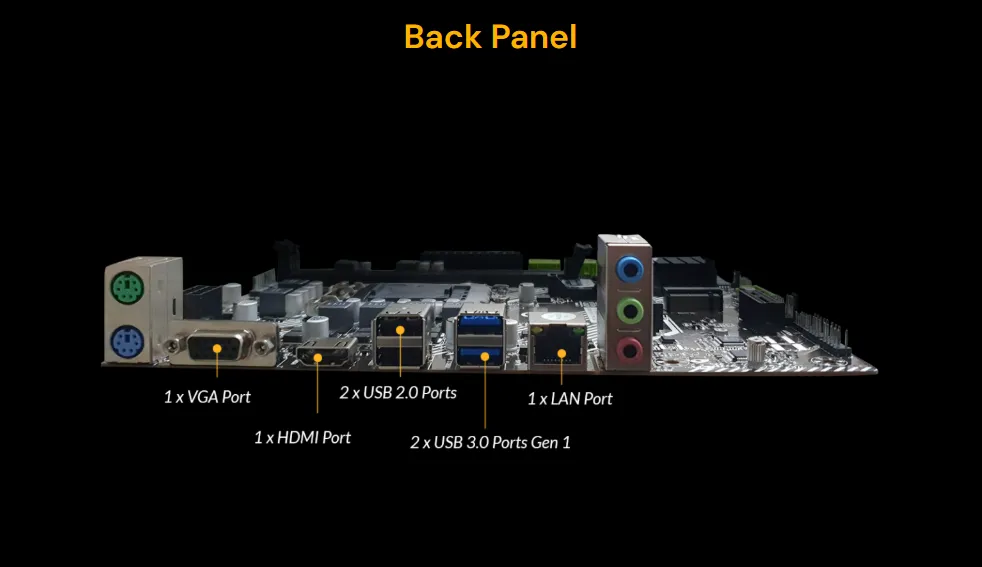

| Rear I/O | 1 × HDMI port, 1 × DisplayPort, 1 × VGA port, 4 × USB3.2 Gen1 ports, 2 × USB2.0 ports, 1 × RJ45 port, 3 × Audio jacks |
| Support System | Windows® 11, Windows® 10 (64-bit) |
| BIOS | UEFI AMI BIOS |
| PCB Size | Micro-ATX (226mm × 195mm) |
