Ease EB450M AM4 DDR4 Motherboard

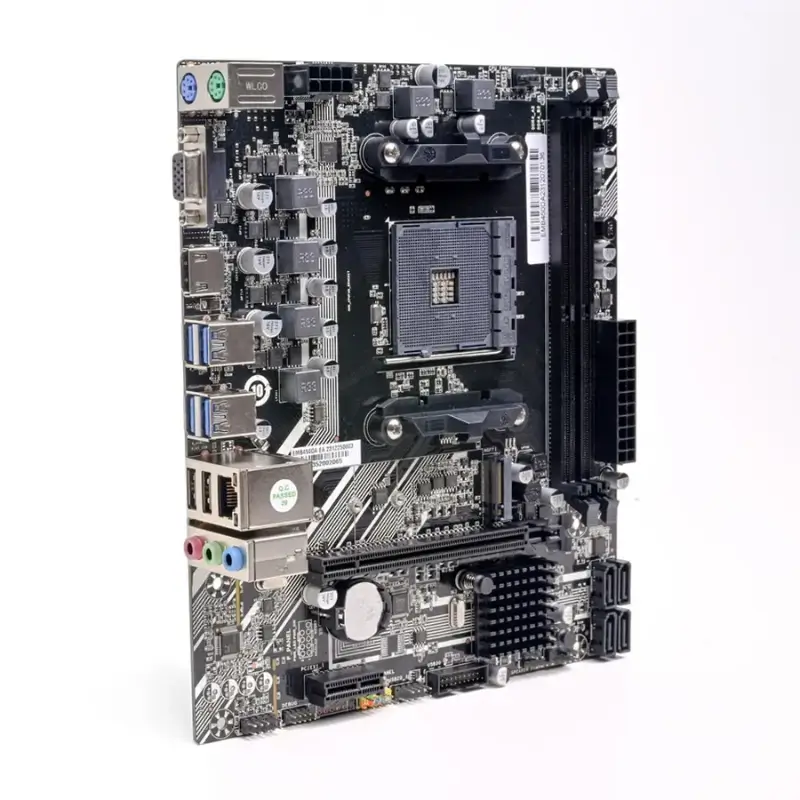

Ease EB450M AM4 DDR4 Motherboard - Image 2

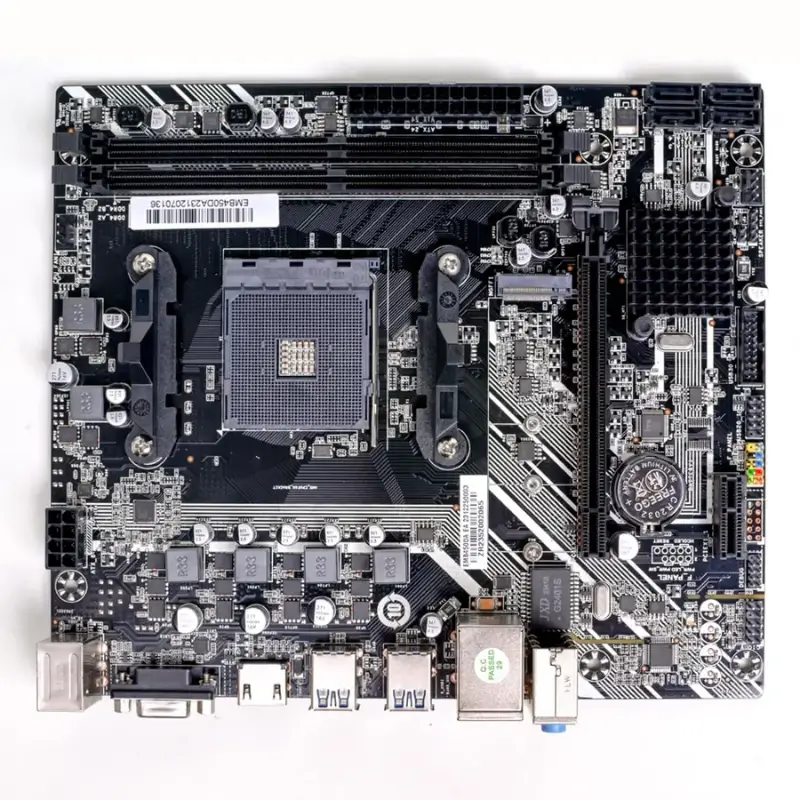

Ease EB450M AM4 DDR4 Motherboard - Image 3

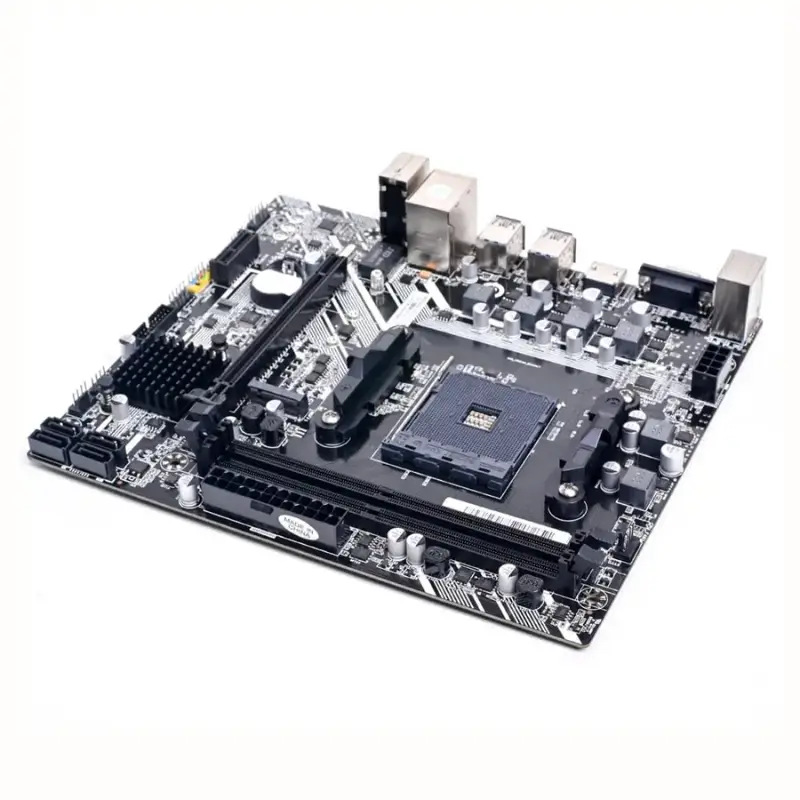

Ease EB450M AM4 DDR4 Motherboard - Image 4

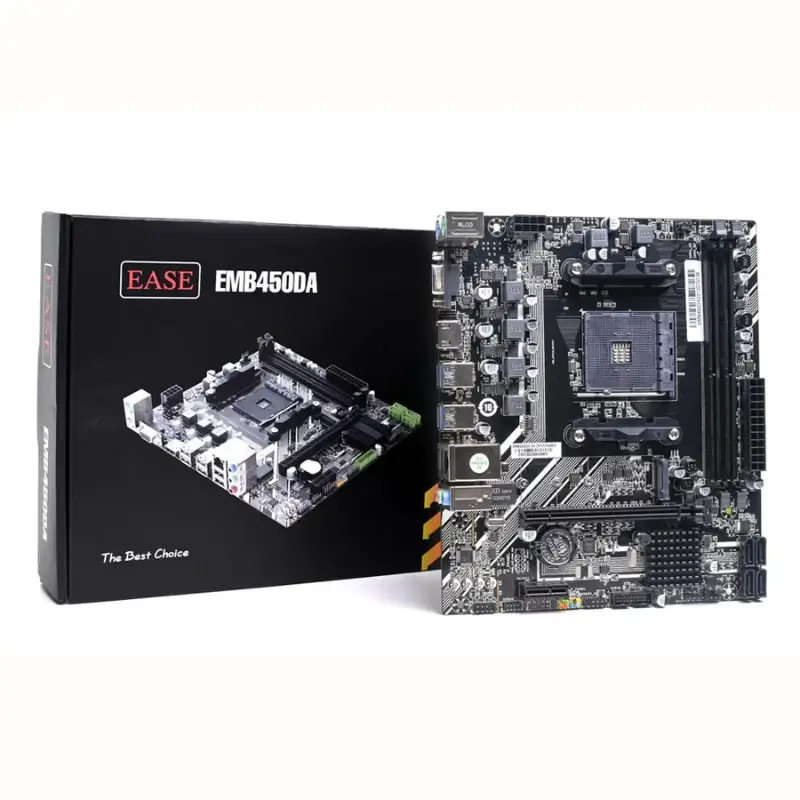

Ease EB450M AM4 DDR4 Motherboard - Image 5

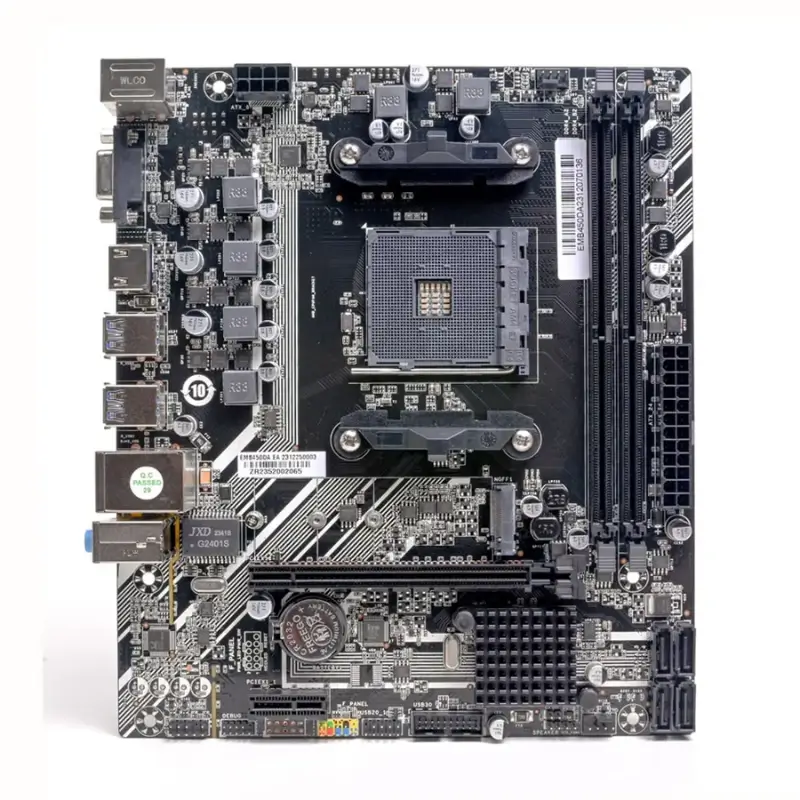

Ease EB450M AM4 DDR4 Motherboard

EASE B450 AM4 2 DDR4 3200Mhz M.2 SSD USB 3.0

  • Chipset: AMD B450
  • Socket: Support AM4 CPU
  • Memory: 2*DDR4 2133/2400/2666MHZ
  • VGA: Support Integrated Graphics
  • LAN: 10/100/1000M Ethernet
  • Audio: 5.1HD Audio codec

Download Driver
Download Catalogue

Get a quote
Get a quote on whatsapp

Description

EMB450DA – The Best Choice

  • Support 1*RTL8111H 10/100/1000MBPs
  • Support AMD Socket AM4 LGA1331
  • Supports 2*DDR4 DIMM Max 64 GB
  • Support 4*SATA 3.0 Ports 6GB/s
  • 4*USB 3.0 Ports

EMB450DA Motherboard Best Choice


Memory Slots

Memory Slots

  • 2*DDR4 2133/2400/2666MHZ with slot signal stability
  • Maximum memory capacity: 64 GB
  • Each slot supports up to 32GB after Intel memory reference code update
  • 2 DIMM per channel, total 64GB (HEDT platform level)
  • Ideal for rendering, video editing, and memory-intensive applications

Slots

  • 1 * M.2 SSD slot
  • 4 * SATA 3.0 Ports SSD up to 6GB/s
  • Fast onboard storage with NVMe PCIe M.2 (2280 NVMe)
  • EASE M.2 solution supports both PCIe and SATA interfaces

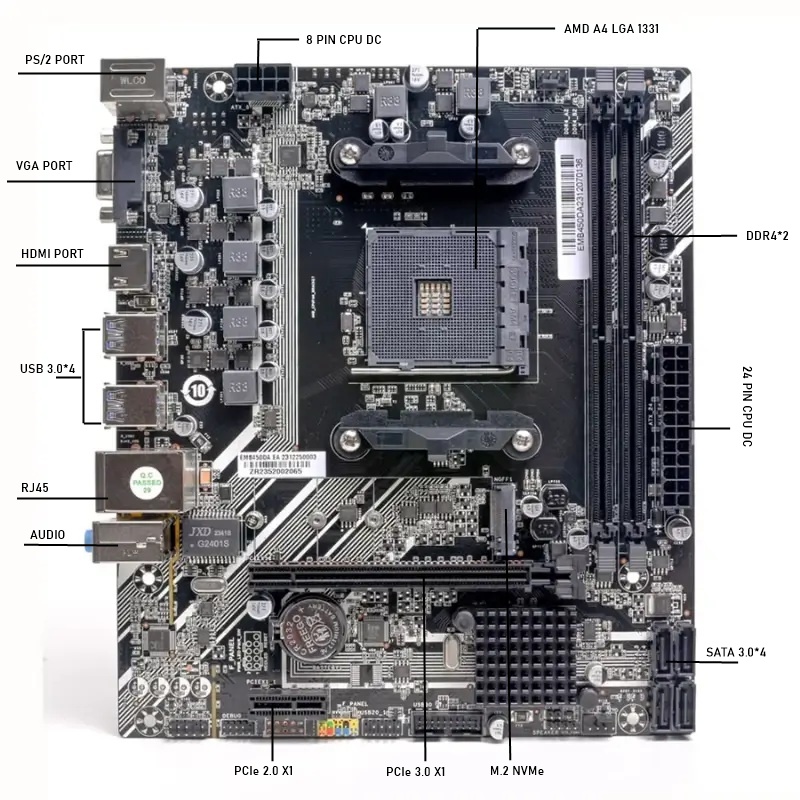

Motherboard Slots


Back Panel

Back Panel

  • Comprehensive connectivity options
  • High-speed USB 3.0 ports
  • Reliable network connection with RTL8111H support
  • Optimized for performance and expandability
Specification Description
CPU AMD® Socket AM4 (LGA1331) supports Ryzen 1000, 2000, 3000, 4000, and 5000 series processors
Chipset AMD® B450 Chipset
Memory 2 × DDR4 DIMM slots, 2133/2400/2666/2933/3200MHz, up to 64GB
Display 1 × VGA port / 1 × HDMI port
Storage 4 × SATA3.0 ports (6Gb/s), 1 × M.2 SSD (M Key NVMe 2242/2260/2280)
Network Realtek® 100Mbps Ethernet Controller, supports Wake On LAN
Audio Realtek® ALC897 high-fidelity audio controller (optional ALC662)
Expansion Slots 1 × PCIe 3.0 x16 slot, 1 × PCIe 3.0 x1 slot
Rear I/O 1 × PS/2 combo port (keyboard/mouse), 2 × USB2.0 ports, 4 × USB3.2 Gen1 ports, 1 × HDMI port, 1 × VGA (D-Sub) port, 1 × RJ45 port, 1 × Audio Jack (Line-In/Line-Out/Mic-In)
Support System Windows® 11, Windows® 10
BIOS UEFI AMI BIOS
PCB Size Micro-ATX (215mm × 185mm)
