Description
| Category | Details |
|---|---|
| CPU | AMD® Socket AM5 — Supports Ryzen 7000 / 8000 / 9000 Series |
| Chipset | AMD® B650 |
| Memory | 2× DDR5 4800/5600 UDIMM, Max 96GB |
| Display | 1× HDMI 1× DisplayPort 1× VGA |
| Storage | 4× SATA 3.0 Ports |
| Network | Realtek RTL8125B 2.5G LAN Optional RTL8111H 1G LAN |
| Audio | Realtek ALC897 High Definition Audio |
| Expansion Slots | 1× PCIe 4.0 x16 1× PCIe 3.0 x1 |

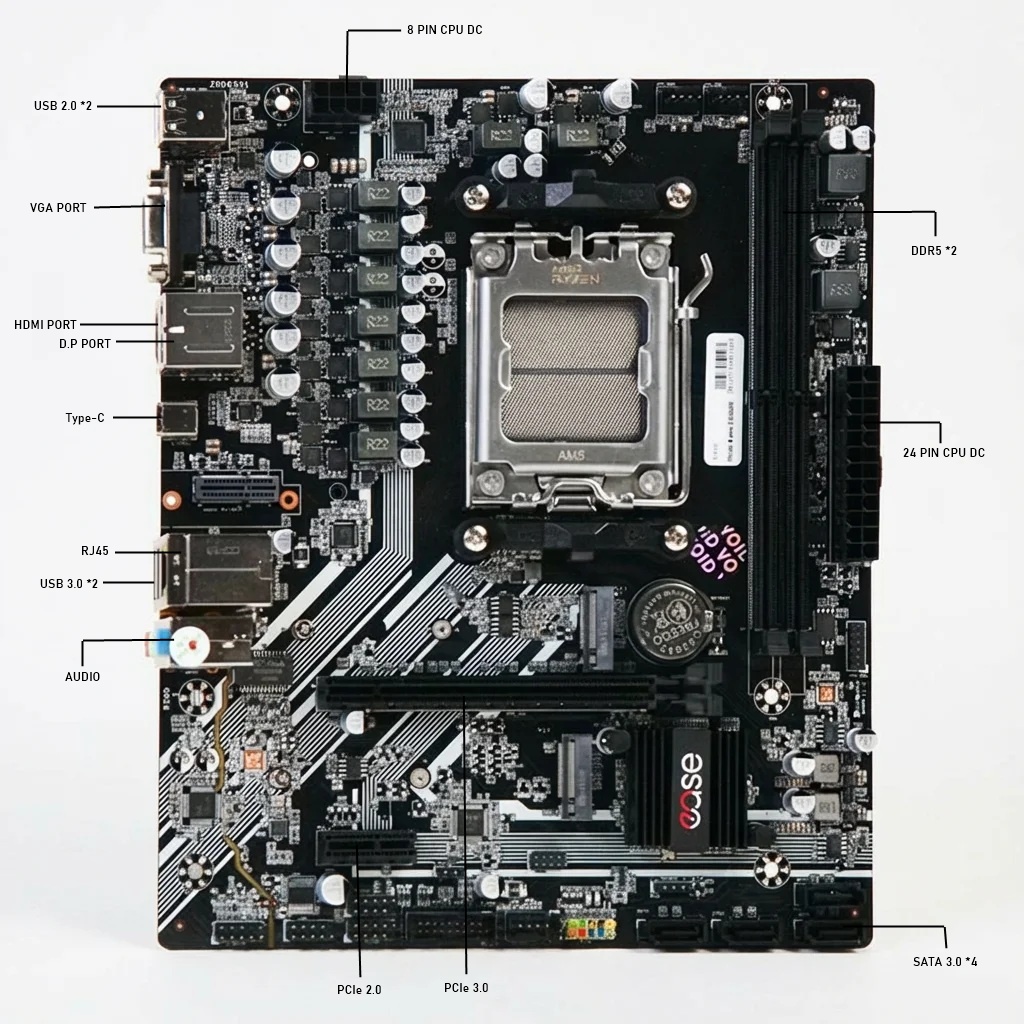

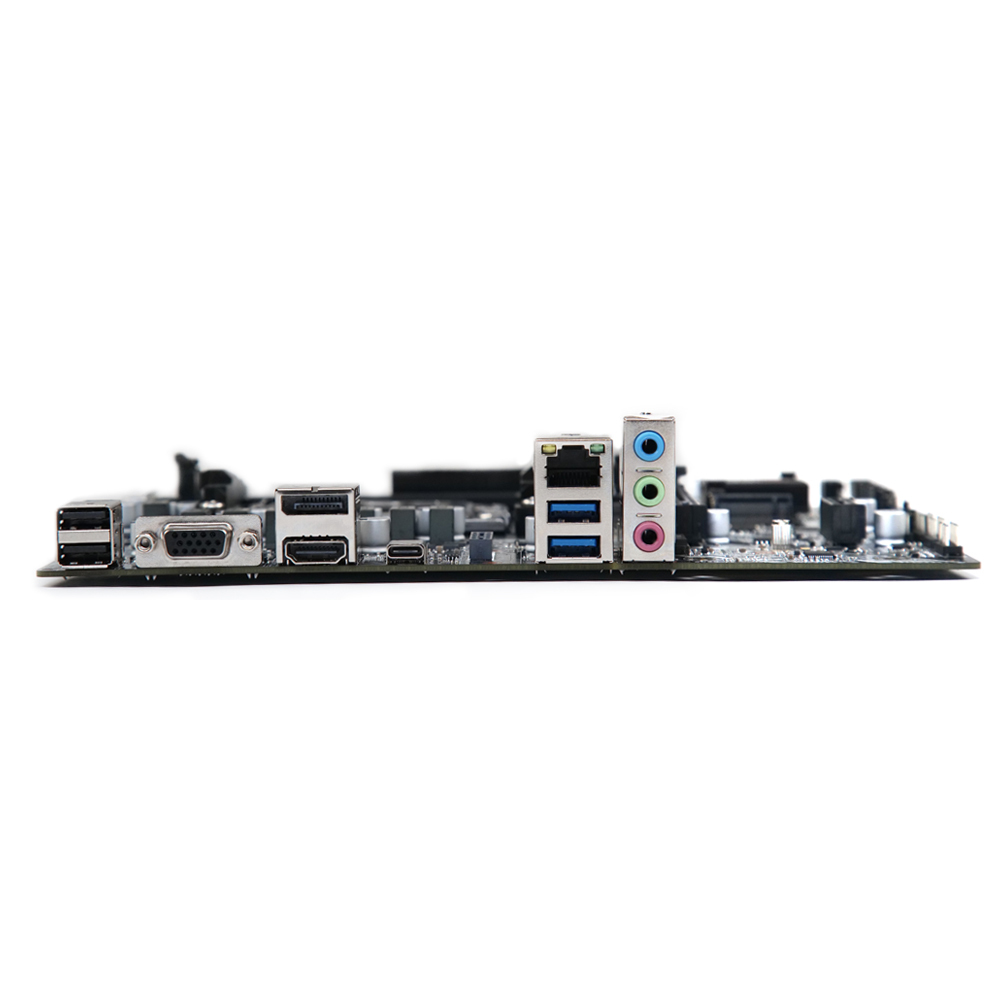

| Rear I/O (Important) | 1× HDMI 1× DisplayPort 2× USB 3.2 Gen1 2× USB 2.0 1× Type-C 1× RJ45 LAN 1× Audio Jack |
| Front I/O (Important) | 1× USB 3.0 Header 2× USB 2.0 Headers 1× Front Audio Header 1× CPU_FAN 2× SYS_FAN ATX_24P Power ATX_8P CPU Power |
| Support System | Windows 11 / Windows 10 (64-bit) |
| BIOS | UEFI AMI BIOS |
| PCB Size | Micro-ATX (192mm × 230mm), 6 mounting holes |
