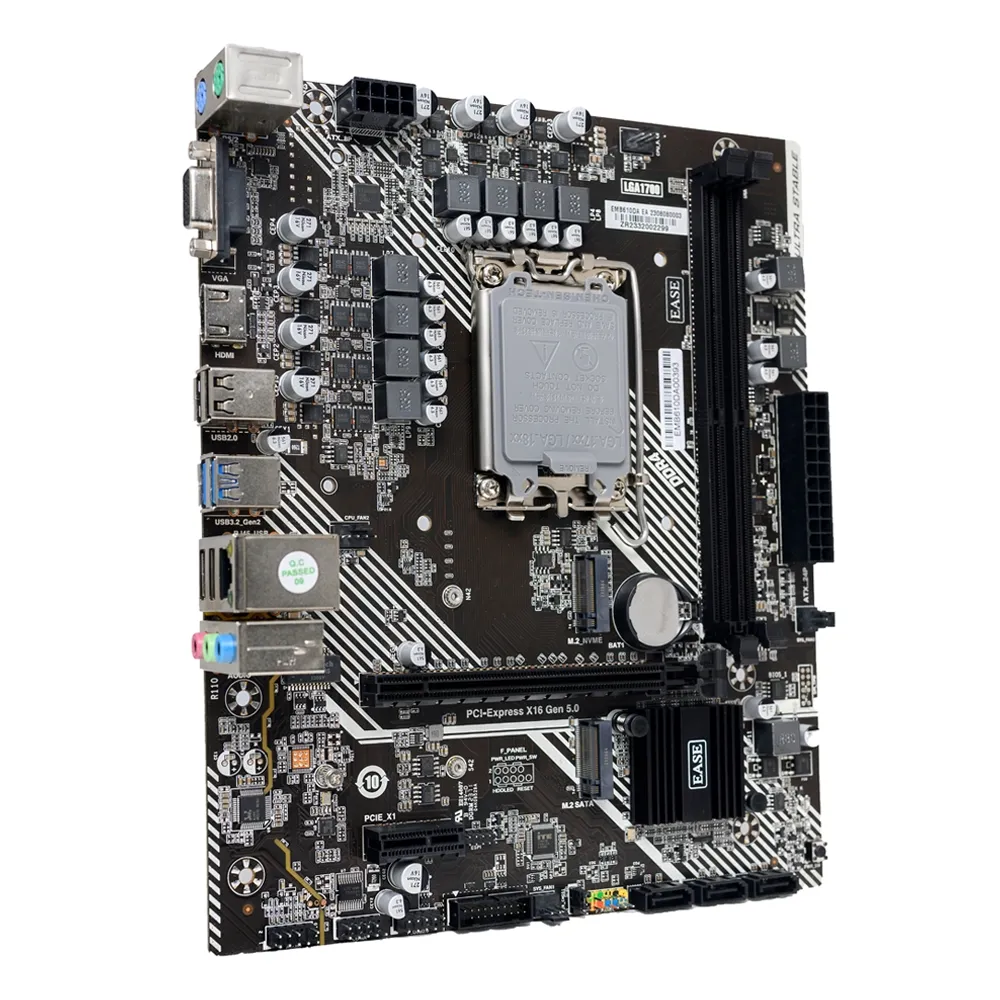

EASE H610M E DDR4 LGA1700 Motherboard
EASE H610M E DDR4 LGA1700 Motherboard - Image 2
EASE H610M E DDR4 LGA1700 Motherboard - Image 3
EASE H610M E DDR4 LGA1700 Motherboard - Image 4

EASE H610M E DDR4 LGA1700 Motherboard

Ease H610M E Intel 12/13 Gen DDR4

– Supports LGA1700 12/13th Gen Intel@ core TMi3/i5/i7/i9/Pentium/Celeron series processors
– Support 2*DDR4 UDIMM Slot 3200MHz, up to 64GB
– Support 3* SATA 3.0 Port 6Gb/s
– Supports RTL8111H 10/100/1000Mbps Ethernet
– Chip Integrated by Realtek. Support 6 Channel Audio Input/Audio Output/Mic

Download Driver
Download Catalogue

Get a quote
Get a quote on whatsapp

Description

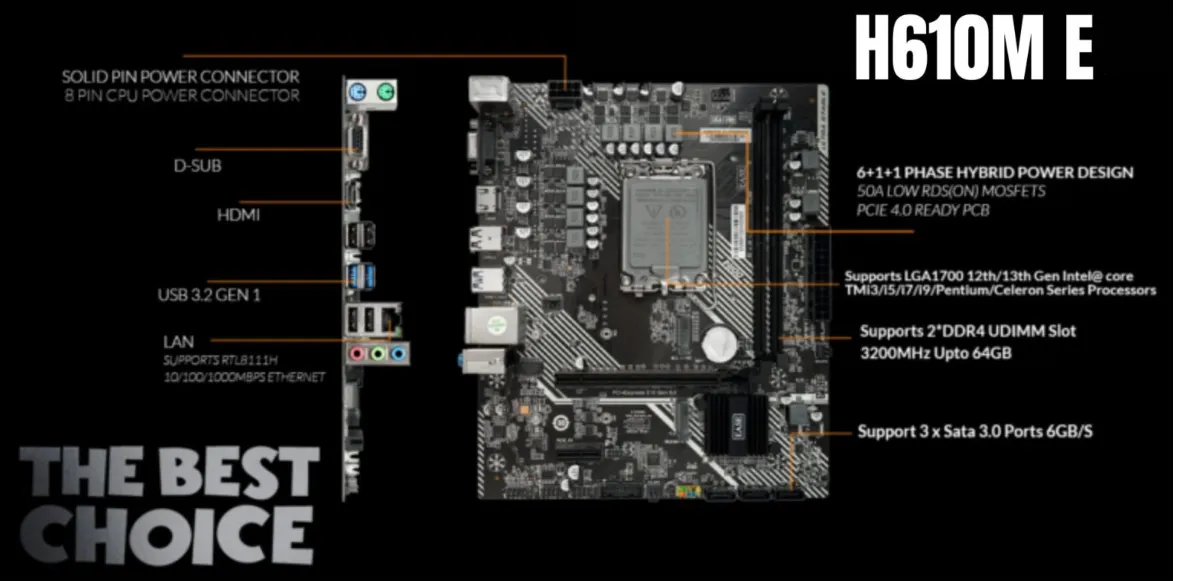

EASE EMB610DA DDR4 LGA1700 Motherboard – The Best Choice

  • Solid Pin Power Connector
  • 6+1+1 Phase Hybrid Power Design
  • Support 12th / 13th Gen Intel® Core Processors
  • Supports 2*DDR4 UDIMM Slot
  • Support 3*SATA 3.0 Ports

EASE EMB610DA Motherboard


Hybrid Power Design

6+1+1 Phase Hybrid Power Design

  • Cleaner and more efficient power delivery with better thermal performance
  • Ensures stability under high CPU frequencies and heavy loading
  • 6+1+1 Phases Low RDS(on) MOSFETs
  • Solid capacitors to improve transient response and minimize oscillation
  • 8-pin Solid Pin CPU Power Connector

Memory Slots

  • Supports 2*DDR4 UDIMM Slot 3200MHz, up to 64GB
  • Slot signal stability with Intel updated memory reference code
  • Each slot supports up to 32GB
  • Total memory capacity of 64GB, once exclusive to HEDT platforms
  • Optimized for rendering, video editing, and memory-intensive workloads

EASE LAN with Bandwidth Management

  • Reliable and stable LAN connectivity
  • Optimized bandwidth allocation for smoother performance
  • Enhanced networking experience for both work and entertainment
Specification Details
CPU Supports SOCKET LGA1700 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9/Pentium/Celeron series processors
Chipset Intel® H610 Chipset
Memory 2 × DDR4 UDIMM slot 2666MHz / 3200MHz, up to 64GB
Display 1 × VGA port / 1 × DP port / 1 × HDMI port
Storage 3 × SATA 3.0 port 6Gb/s 1 × M.2 SSD support 2242/2280 PCIe x4 / SATA signal
Network 1 × RTL8111H 10/100/1000Mbps Ethernet Supports Wake On LAN
Audio 1 × Realtek ALC897 high fidelity audio controller
Expansion Slots 1 × PCI Express x16 Gen 4 slot 1 × PCI Express x1 Gen 3 slot

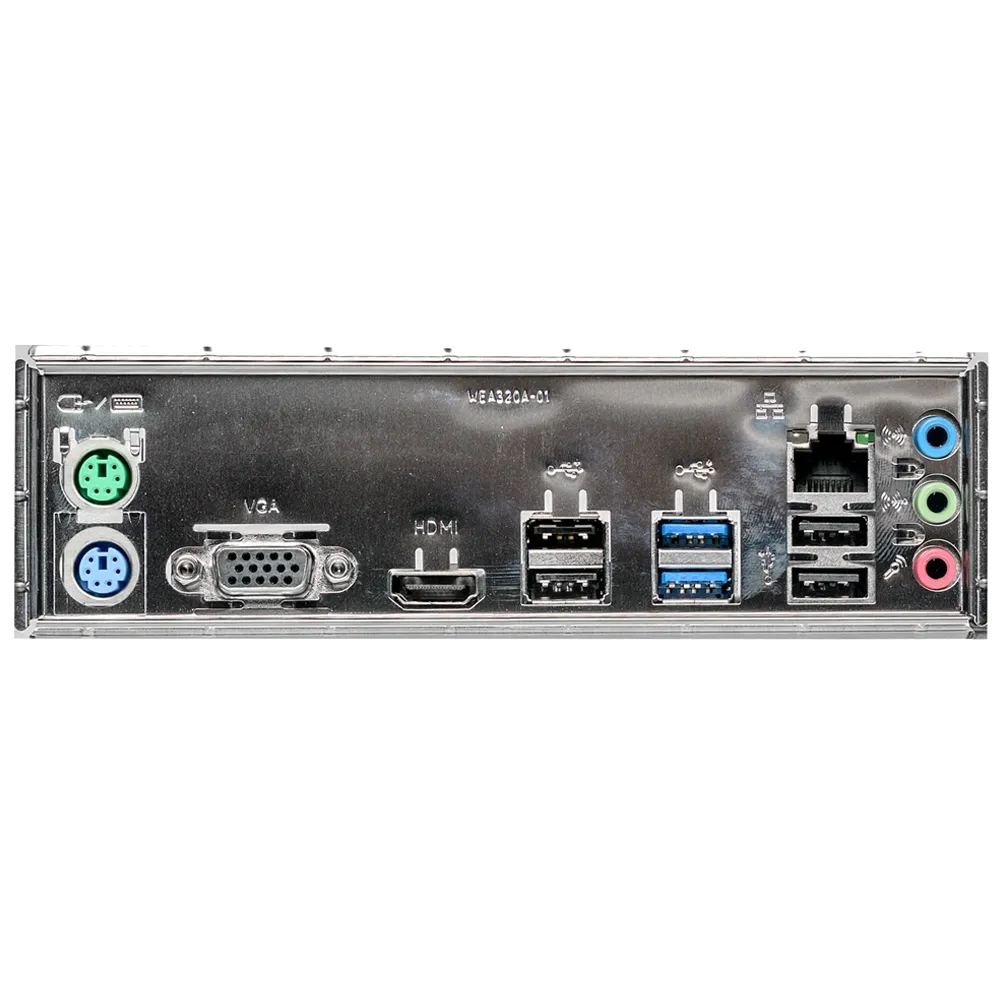

Rear I/O 1 × DP port (optional) 1 × VGA port 2 × USB 3.2 Gen2x1 port 1 × HDMI port 4 × USB 2.0 port 1 × Audio jack (Line-in / Line-out / Mic-in) 1 × RJ45 port
Support System Windows® 11, Windows® 10
BIOS UEFI AMI BIOS
PCB Size Micro-ATX (220mm × 175mm)
